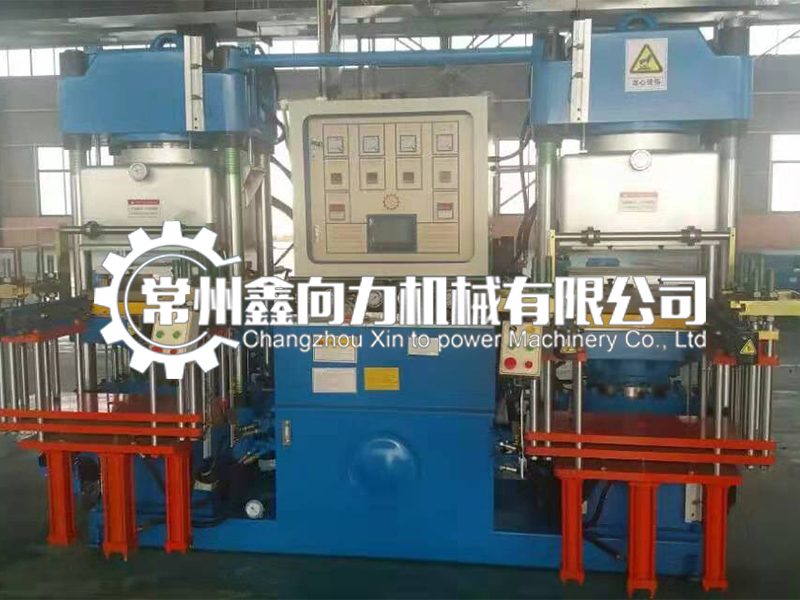

Vacuum front top 3RT mold opening series

Machine Features

◆ The 3RT architecture features beyond the general traditional front-top mold lifting, which can be used for three-layer or four-layer molds with special functions, including mold lifting and mid-layer

individual mold ejection design.

◆ It adopts dual power, dual oil pumps, dual motors, and dual coolers, with two axes working completely independently.

◆ The oil system is specially designed to be vibration-free and stable, with faster mold entry and exit, as well as faster ascent and descent speeds compared to machines in the same industry.

◆ High vacuum degree, using average pumping method, can stabilize the product, improve quality and production capacity.

◆ The vacuum gas storage tank is base-type, with large gas storage space.
